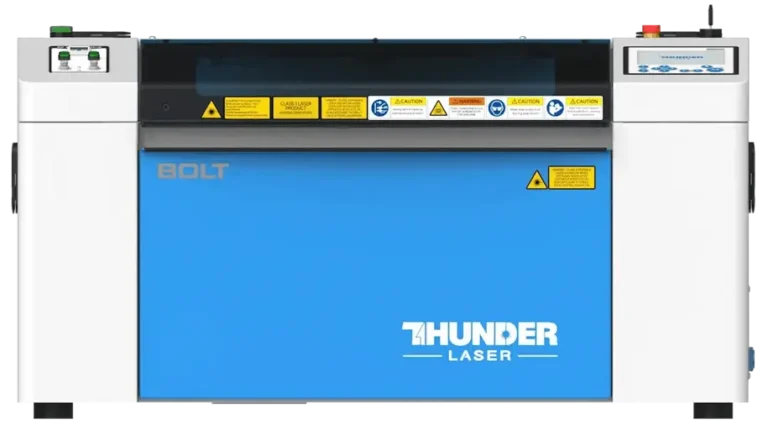

CO2 Laser | 30W RF / 60W RF Laser Tube | 1,500mm/s | Work Area: 508 x 305 x 130mm
Laser Category: CO2 Laser
Laser Type: 30W RF Laser
Laser Head: 2.5 Inch
Resolution: 1,200 dpi with 1.5 Inch Lens
Max Engraving Speed: 1,500mm/s
Autofocus: Built-in
Camera: 5MP Mounted Camera
Rotary: Supported
Work Area: 508 x 305 x 130mm (W x D x H)
Cooling System: Air Cooling
Air Assist: Dual Channel
Panel: Colour Touchscreen
Memory: 1GB RAM
Connectivity: Ethernet, USB Cable, Flash Memory
Software: LightBurn, LaserMaker, RDWorks
Laser Tube Life: 10,000+ Hours
Machine Dimensions: 941 x 724 x 498mm (W x D x H)
Machine Weight: 77 kg
Thunder Bolt Highlights:
Material Capabilities of Thunder Bolt:
| Material | Engraving | Cutting |
|---|---|---|
| Wood | ✓ | ✓ |
| Acrylic | ✓ | ✓ |
| Derlin | ✓ | ✓ |
| Cloth | ✓ | ✓ |
| Leather | ✓ | ✓ |
| Mat Board | ✓ | ✓ |
| Melamine | ✓ | ✓ |
| Paper | ✓ | ✓ |
| Mylar | ✓ | ✓ |
| Pressboard | ✓ | ✓ |
| Rubber | ✓ | ✓ |
| Acrylic | ✓ | ✓ |
| Wood Veneer | ✓ | ✓ |
| Fiberglass | ✓ | ✓ |
| Plastic | ✓ | ✓ |
| Cork | ✓ | ✓ |
| Corian | ✓ | ✓ |
| Twill | ✓ | ✓ |
| Anodized Aluminum | ✓ | X |
| Painted Metals | ✓ | X |
| Tile | ✓ | X |
| Glass | ✓ | X |
| Coated Metals | ✓ | X |
| Ceramics | ✓ | X |
| Marble | ✓ | X |
| Mirror | ✓ | X |
Note: CO2 Lasers cannot cut metal directly. They can engrave coated and painted metals
