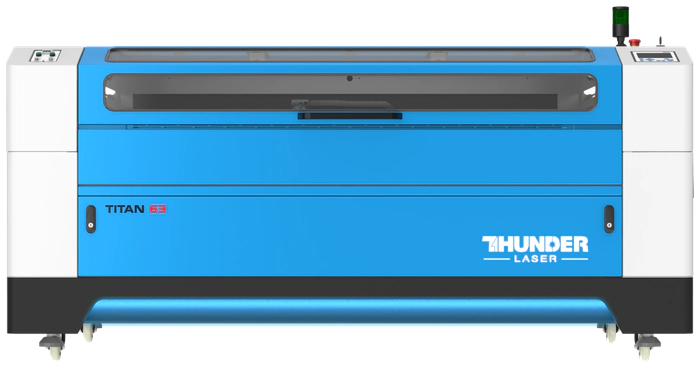

Thunder Titan 63
Thunder Titan 63 - CO2 RF Laser
Quick Specs | Thunder Titan 63
- Free Delivery Across UAE
- Free Installation Included
- User Training Included
- 1 Year Service Contract (AMC)
- 1 Year Warranty (Extendable)
- Competitive Business Pricing
Browse Products
Browse by Brand or Category
Detailed Specs for Thunder Titan 63 - CO2 RF Laser:
Laser Category: CO2 Laser
Laser Type: 50W-120W RF Laser
Laser Head: 2.5 Inch
Resolution: 2,000 dpi with 1.5 Inch Lens
Max Engraving Speed: 3,000mm/s
Autofocus: Built-in
Camera: Triple 5MP Cameras
Rotary: Supported
Work Area: 1,600 x 1,000 x 230mm (W x D x H)
Pass Through: 1,600 x Unlimited Length x 65mm
(W x D x H)
Cooling System: Air Cooling
Air Assist: Dual Channel
Panel: Colour Touchscreen
Memory: 1GB RAM
Connectivity: Wi-Fi, Ethernet, USB Cable, Flash Memory
Software: LaserMaker, LightBurn, RDWorks
Laser Tube Life: 10,000+ Hours
Machine Dimensions: 2,250 x 1,570 x 1,110mm (W x D x H)
Machine Weight: 624 kg
Why choose the Thunder Titan 63 ?
For businesses that need equipment for marking, engraving and cutting view our professional laser cutter machine range.
- CO2 RF Laser
- 65mm Pass Through (For Unlimited Material Length)
- Photo Quality 2,000 dpi Engraving
- Local On-Site Support in UAE
- Industrial Grade Build
Thunder Titan 63 - CO2 RF Laser Highlights:
- CO2 RF Laser (Metal Laser Tube)
- Optional 1.5 Inch, 2.0 Inch, 4.0 Inch Laser Head
- Rotary Supported
- Network Connectivity
- Touchscreen Panel
- 1GB RAM
- 0.01mm Accuracy
- Direct Engrave from USB Flash Memory
- RF Laser Tube Life: 10,000+ Hours
- Photo Quality Engraving at 2,000dpi
Thunder Laser - Thunder Titan 63 Video
How the Thunder Laser - Thunder Titan 63 Helps Your Business:
Save Time
Improve Output Quality
Reduce Downtime
Built for Production Environments
Scale With Your Production Needs
Reduce Costs
FAQs about the Thunder Titan 63
The Thunder Titan 63 is a large-format RF CO₂ laser machine for commercial cutting, engraving and marking, with configurable power options from 50W to 120W. It suits businesses producing large signs, display panels, decorative products, packaging and custom components.
The Titan 63 can cut and engrave wood, MDF, acrylic, paper, cardboard and suitable laser-safe leather, fabric and rubber. It can also surface engrave glass, ceramic, slate and marble. Material composition, thickness and the required finish determine the appropriate processing settings.
The Titan 63 provides a 1,600 × 1,000 mm working area with 230 mm of vertical working depth. Its spacious bed accommodates larger workpieces and allows multiple smaller products to be arranged together for batch production.
Yes. Its pass-through opening accepts material up to 1,600 mm wide and 65 mm high. Longer boards and panels can extend through the machine and be repositioned to process successive sections beyond the standard working area.
The Titan 63 supports a maximum engraving speed of 3,000 mm/s. Actual job time depends on the artwork, layout, material, engraving depth and required finish. Cutting operates at lower speeds using settings appropriate to the material and thickness.
Yes. With the optional 1.5-inch lens, the machine supports engraving resolutions up to 2,000 dpi. Correct image preparation, accurate focus and tested material settings help reproduce photographs, small lettering, logos and detailed graphics.
Yes. The Titan 63 includes built-in autofocus and three 5 MP cameras. Autofocus helps establish the correct focal distance, while the cameras assist with work-area viewing, artwork positioning and job alignment across the larger bed.
Yes. A compatible rotary attachment enables engraving on suitable cylindrical items, including bottles, glasses and coated tumblers. The object’s dimensions, shape, material and surface finish determine its suitability for processing.
The Titan 63 supports LaserMaker, LightBurn and RDWorks. Connection options include Wi-Fi, Ethernet and USB, while USB flash memory can also be used to transfer prepared jobs to the machine.
Its CO₂ laser can mark suitable coated or anodised metals by removing the surface finish. The Titan 63 is not designed for cutting metal or deep engraving directly into bare metal. These applications require an appropriate fiber laser system.
NPC includes free delivery across the UAE, professional installation, operator training, a one-year service contract and a one-year extendable warranty. Local technical support and spare parts are also available to support ongoing production.
National Printing Centre is an authorised Thunder Laser distributor with branches in Abu Dhabi, Dubai and Sharjah, supplying businesses throughout the UAE. Contact NPC for current availability and a quotation based on your materials, workpiece sizes and production requirements.
