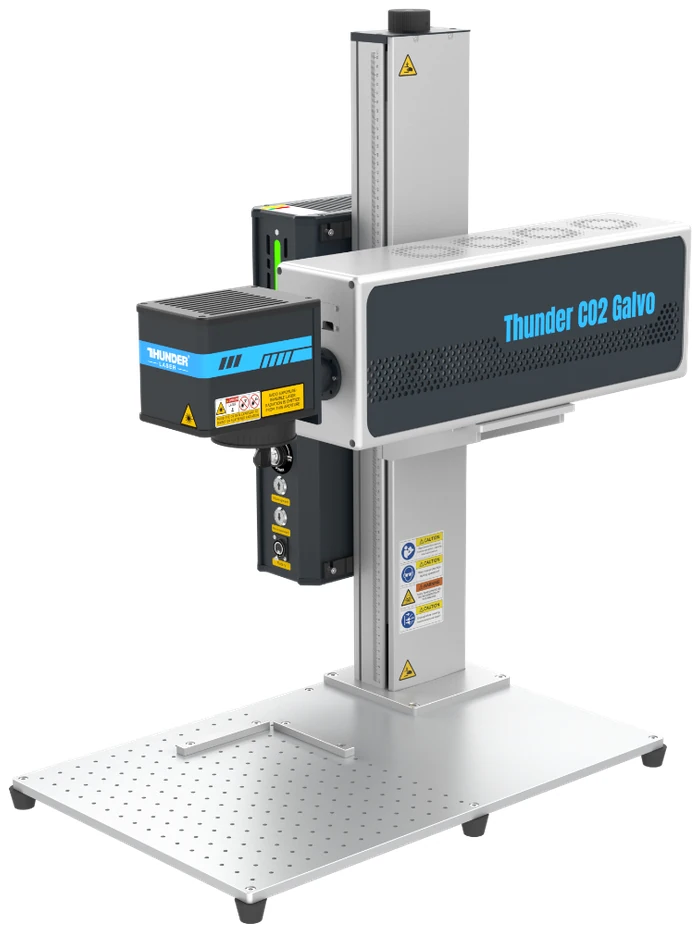

Thunder CO2 Galvo

A galvo laser directs its beam using fast-moving mirrors, while a gantry laser moves its processing head across the material. The Thunder CO2 Galvo suits repetitive marking and engraving within its marking field. A gantry CO2 machine is generally the more suitable choice for regular sheet cutting and larger cutting layouts.

Applications include suitable grades of wood, acrylic, leather, paper, fabric and laser-compatible rubber, together with surface engraving on suitable glass and ceramic products. The exact material, additives and coatings must be checked before processing. Sample testing is recommended to confirm the finish and appropriate settings.

Yes, suitable glass products can be surface engraved for names, logos and decorative designs. Results depend on the glass composition, coating, shape and engraving settings. A sample test is recommended, and cylindrical products may require a compatible rotary attachment and suitable positioning.

It can mark compatible anodised, painted or powder-coated metal surfaces by acting on the surface finish. It is not intended for cutting metal or direct deep engraving of bare metal. For direct bare-metal marking and engraving, compare NPC's fibre and MOPA laser machines against your material and required result.

Its main purpose is marking and engraving rather than routine sheet cutting. Some thin materials may be processed after application testing, but suitability depends on the material, design and required edge quality. For regular wood or acrylic cutting, compare a gantry CO2 laser engraving and cutting machine.

The standard marking field is 300 x 300 mm. Optional 200 x 200 mm and 100 x 100 mm marking fields are available with the appropriate lenses. The selected lens affects the marking field and setup, so NPC should confirm the lens, usable clearance and required detail for your application.

Its open design allows access for some objects larger than the marking field, but it does not provide an unlimited engraving area. Each setup must remain within the selected marking field, focus, clearance and support limits. A compatible optional rotary can be used for suitable cylindrical products; confirm the diameter, shape and engraving area before ordering.

The Thunder CO2 Galvo supports EZCAD2 and LightBurn with the appropriate galvo configuration and USB connection. EZCAD2 requires Windows. LightBurn is listed as optional in the product brochure, so your quotation should confirm the correct licence and the software supplied with the machine.

The published maximum fill speed is 3,000 mm/s, and the maximum line speed is 1,000 mm/s. These are processing-speed specifications, not guaranteed finished items per hour. Actual output depends on the artwork, material, settings, part positioning and handling; a timed sample run is the best way to estimate your production capacity.

The open-frame Thunder CO2 Galvo is a Class 4 laser and requires a suitably controlled workspace, trained operators, appropriate laser-safety protection and effective fume extraction. It should not be treated like an enclosed office appliance. Confirm the required enclosure, extraction or filtration arrangements for your premises, and supervise the machine during operation.

NPC supplies brand-new Thunder CO2 Galvo machines with free UAE delivery, installation, user training, a one-year service contract and a one-year extendable warranty, subject to the quotation terms. Ask NPC to confirm availability and which software, lenses, rotary accessories and extraction equipment are included. Share your material, largest item size, required finish and batch quantity so the configuration can be matched to your work.
